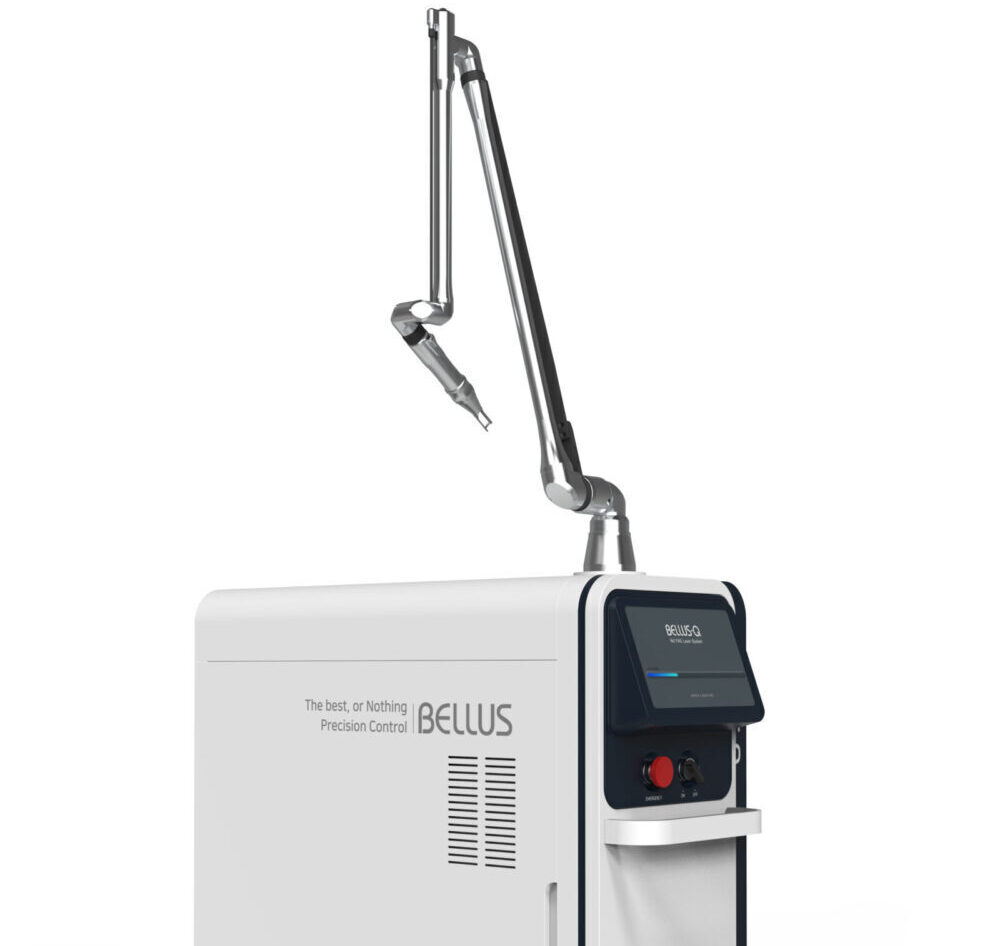

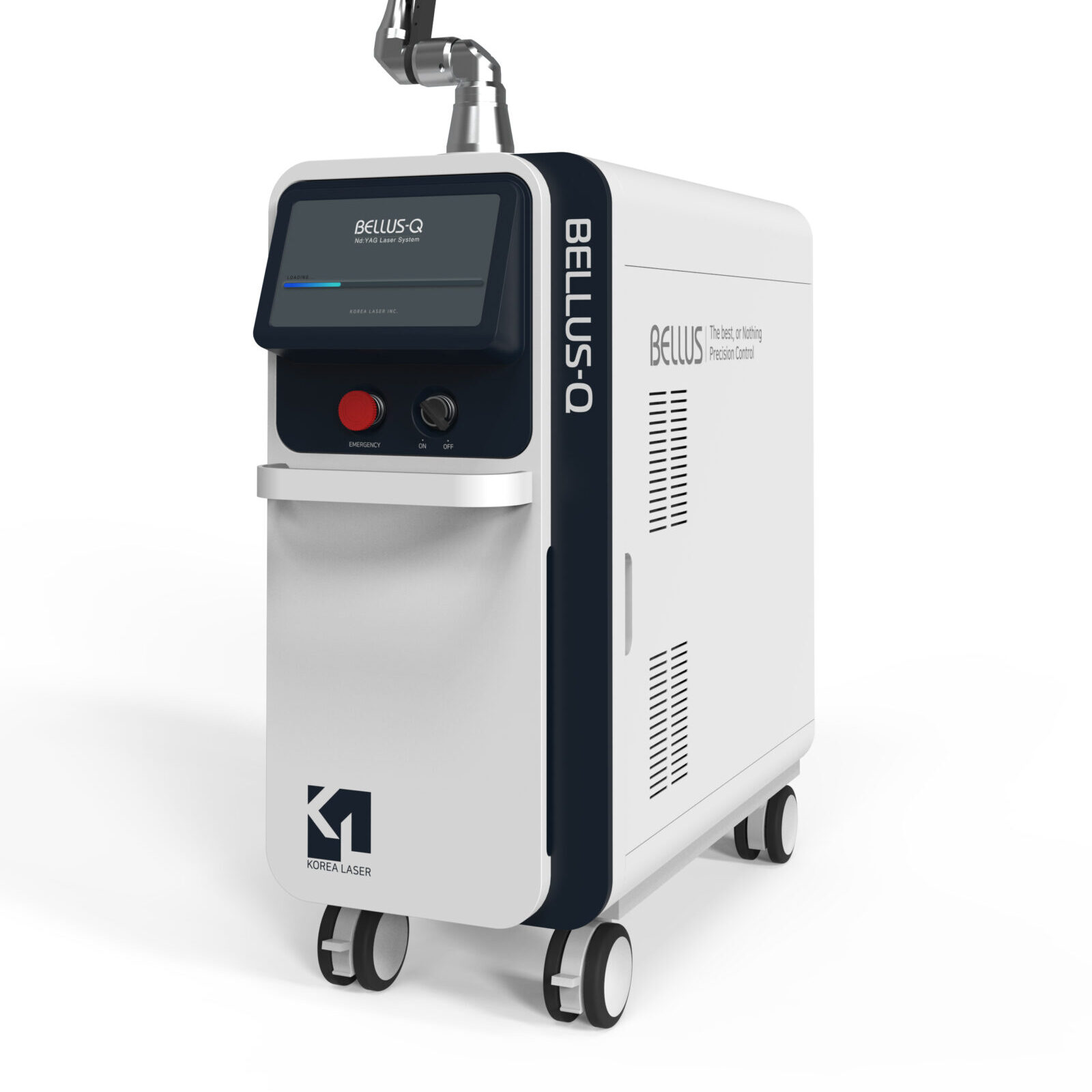

Bellus_Q Q-Switch Laser 1
Lasers, Q-Switched Laser


Q-Switched Nd:YAG Laser

Bellus-Q provides superior pulse stability, PP mode and stable energy to secure the best results for patients.

Applications include:

  • PTP Toning
  • Pigmented Lesion
  • Tattoo Removal
  • Skin Resurfacing
  • Wrinkle Reduction
  • Acne Scar Reduction

High Peak Power

1.5J at the end of an articulated arm. Perfect beam uniformity.

Easy Maintenance

After exchanging flash lamps, no change alignments.

Effective Treatment

6 Pulses, 15Hz

Power Factor Correction (PFC)

Power Quality Improvement.


Bellus-Q is one of the highest single pulse energy generation Q-Switched lasers, with peak power over 300MW.

Bellus-Q maintains a stable pulse duration within the range of 5-10ns while ensuring a superior beam profile. This ensures that users can depend on the device to administer accurate and reliable laser treatment with minimal side effects.

PhotoAcoustic, high peak power and short pulse duration impacts the lesions without pain.

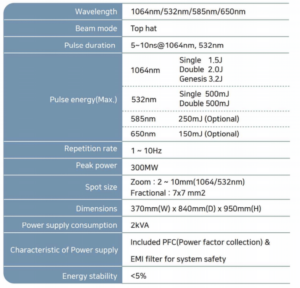

Bellus-Q Specification
